EZ HAUL TRAILERS
T&B Welding & Trailers has been building quality products since 1992. Located in Lockwood, Missouri, T&B is the home of the E-Z Haul Hay Handler, the #1 Self Unloading Hay Trailer which features the Original Double Latch System. EZ Haul Flatbed Trailers offer sizes from 20' to 40' lengths with several options available, including the Low Profile Hydraulic Dovetail Trailer. EZ Haul Flatbed Trailers sports many standard features:
- 2-5/16” Adjustable Coupler (20,000 lb rated)
- Hi-Tensile Safety Chain with Hooks (18,800 lb rated)
- 2 Oil-Bath Dexter Brake Axles (10,000 lb rated)
- 235/85R 16 10-ply Radial Tires (Duals - 3,500 lb rated ea.)
- Forward Self-Adjusting Electric Brakes
- Stakepockets with Rubrails
- 2nd 12K Jack
- 3” Channel Crossmembers on 16” Centers
- 2 side steps
- Lockable Tool Box
- Torx Tube standard on all trailers
- Electric Breakaway Kit
- DOT Refl ective Tape
- Tubing Side Rails
- Tubing Bumper
- 9’ Dove Tail Picks 10,000 lbs.
- Side Turn Signals
- 12” x 19lb. I-Beam
- Primed and Painted
- Acrylic Enamel
- Treated Floor
- Amber Flashers included on all trailers (LED optional)
- 235/85R 16 Spare Tire with Wheel (optional)
- 2-Year Limited Warranty (Warranty work must be completed by T&B Welding & Trailers only.. 2 YEAR STRUCTURAL WARRANTY www.ezhaultrailer.com

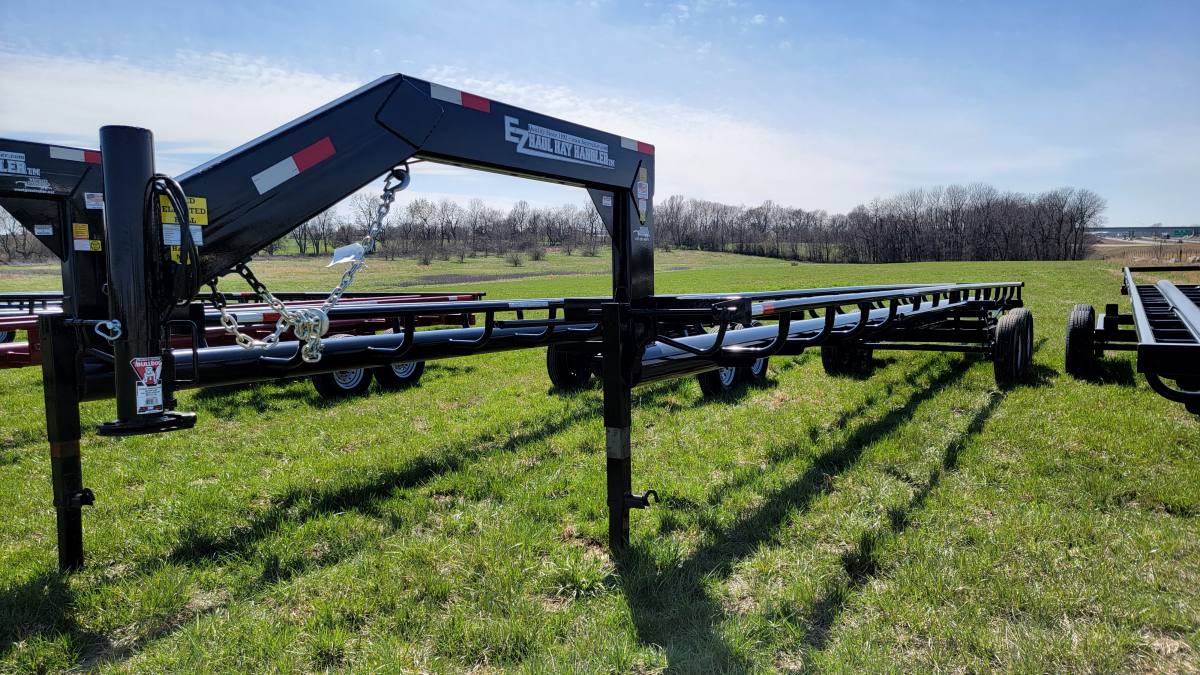

The Original EZ Haul Hay Handler
The original EZ Haul Hay Handler developed with a double latch system makes hauling round bales of hay safer, easier and faster! Standard Features include:
- Two 6000lb. axles
- One axle equipped with brakes
- Heavy duty 8 lug axle hub
- New rims and 10-ply tires
- 16 x 6 white spoke wheels
- Running lights - protected tail lights
- Main pipe has 3/8” thick wall
- Frames made of 3x5 tubing
- Double latch locking system
- Load lock for long hauls
- Safety chains
- Gooseneck models: 12,000lb. spring loaded jack
- Bumper hitch models: 7,000lb. retractable jack
- Wired to be road-ready
- Standard 3-Year Structural Warranty*
* All Warranty Work must be done by T & B Welding & Trailers only.
The "Haysaver" round bale feeders are like no other when it comes to sturdiness and durability in feeding hay and the best feature is less hay is wasted.
